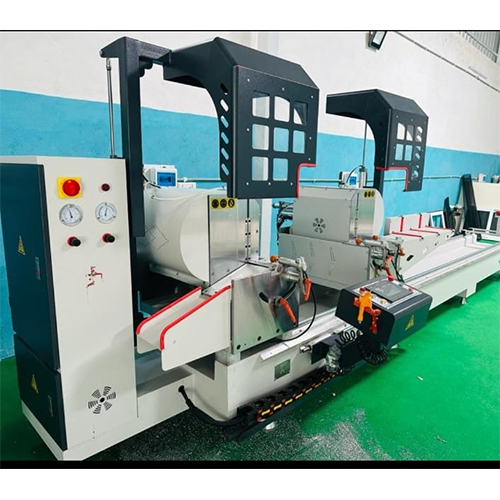

Fully Automatic Double Head Cutting Machine

Send Inquiry

Request To Call Back

Fully Automatic Double Head Cutting Machine

Name: Fully Automatic Double Head Cutting Machine
Brand: SMART SOLUTIONS
Price: 950000 INR
Availability: InStock

Price 950000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fully Automatic Double Head Cutting Machine Specification

Drive Motor
AC Servo motor

Product Type
Fully Automatic Double Head Cutting Machine

General Use
uPVC, aluminium window and door frame profiles

Material
Aluminum, PVC, and light alloys

Type
Double Head Cutting Machine

Capacity
60-120 pieces/hour (profile dependent)

Weight (kg)
Approx. 550 kg

Computerized
Yes

Automatic
Yes, fully automatic

Cutting Speed
2800 rpm blade speed

Cutting Thickness
Up to 120 mm

Cutting Function
Precision double-head 45 to 90 angle cutting

Cooling System
Water spray or air cooling

Drive Type
Servo motor driven

Voltage
380V, 50Hz

Dimension (L*W*H)
4200 x 1200 x 1600 mm

Feature
Fully automatic operation, digital length input, high efficiency

Color
Industrial Grey/Blue

Motor
3.0 kW, high-torque induction motor

Mechanical Precision
0.2 mm

Software Detail
PLC-based control with LCD display interface

Cutting Method
Saw blade cross cutting

Control System
PLC with touchscreen

Cutting Material
Aluminum, PVC, Alloy profiles

Cutting Area
Large dual-head working area for simultaneous profile section cutting

Lubrication System
Automatic mist lubrication

Safety Features
Enclosed guard, emergency stop button, two-hand control start

Blade Material
Tungsten Carbide Tipped (TCT)

Dust Extraction Port
Yes, 100 mm

Operator Interface
Touchscreen HMI

Noise Level
<75 dB(A)

Air Pressure Requirement
0.5 - 0.8 MPa

Profile Clamping
Hydraulic/Pneumatic

Worktable Height
900 mm

Power Consumption
4.5 kW

Repeatability
0.1 mm

Blade Size
400 mm TCT blade

Head Angle Adjustment
45 ~ 90 automatic setting

Fully Automatic Double Head Cutting Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5 Pieces Per Month

Delivery Time
7-10 Days

About Fully Automatic Double Head Cutting Machine

Experience dazzling efficiency and affordability with our Fully Automatic Double Head Cutting Machine, engineered for unbeatable quality and competitive pricing. This machine features an unparalleled 400 mm TCT blade, servo motor drive, and PLC touchscreen control for uncommon precision and repeatability of 0.1 mm. Noise levels remain low (<75 dB), while robust safety features, hydraulic/pneumatic clamping, and a 900 mm worktable enhance productivity. Perfect for aluminum, PVC, and alloy profiles, this dual-head system ensures unmatched value, high capacity, and effortless digital operation-truly setting a new standard for price-cut innovation.

Primary Advantages & Key Uses of Double Head Cutting Machine

Our Double Head Cutting Machine embodies precision with servo-driven heads and automatic mist lubrication, suited for uPVC, aluminium, and lightweight alloy profile cutting. Designed for high-volume industrial operations, it boasts a large dual-head area for simultaneous cutting, minimizing turnaround. Use it for window and door frame fabrication-its digital control and flexible head angles guarantee superior surface finish and dimension accuracy, delivering an exceptional blending of speed, safety, and smooth operation across demanding applications.

Market Reach, Supply Capacity, and Order Valuation Insights

The Fully Automatic Double Head Cutting Machine commands strong demand across India's main domestic hubs and international export markets. Our proposal amounts are tailored for both single-unit and bulk purchases, with flexible valuations set by competitive trends. Supply ability ensures swift order completion, supporting manufacturers, retailers, exporters, and wholesalers. This sophisticated equipment meets wide-ranging fabrication needs, promising expedited delivery schedules and consistent quality across every order fulfilled.

FAQ's of Fully Automatic Double Head Cutting Machine:

Q: How does the Fully Automatic Double Head Cutting Machine enhance precision during operation?

A: The machine utilizes servo motor-driven heads and a PLC-based control system with digital length input, ensuring unparalleled repeatability of up to 0.1 mm and mechanical precision of 0.2 mm in every cut.

Q: What materials can be processed with this double head cutting machine?

A: It is specifically designed to cut aluminium, PVC, and light alloy profiles, making it ideal for uPVC window and door frame manufacturing as well as other industrial applications.

Q: Where is this machine commonly installed and used?

A: It is widely installed in manufacturing units, fabrication workshops, and factories specializing in large-scale production of windows and doors, both in India and international markets.

Q: What is the process for adjusting the cutting angle on this machine?

A: The head angle can be automatically set anywhere from 45 to 90 using the PLC touchscreen interface, enabling swift and precise adjustments to meet varying project needs.

Q: What are the main safety features included with the machine?

A: It includes an enclosed guard, emergency stop button, two-hand control start, and a dust extraction port, keeping operators safe while providing a clean working environment.

Q: How does the machine's competitive pricing deliver value to buyers?

A: Price cuts and affordable rates offer uncommon savings, while uncompromising build quality and high efficiency provide exceptional value for manufacturers and suppliers alike.
